차량정보/제원
교량점검차
범블비
Bumblebee

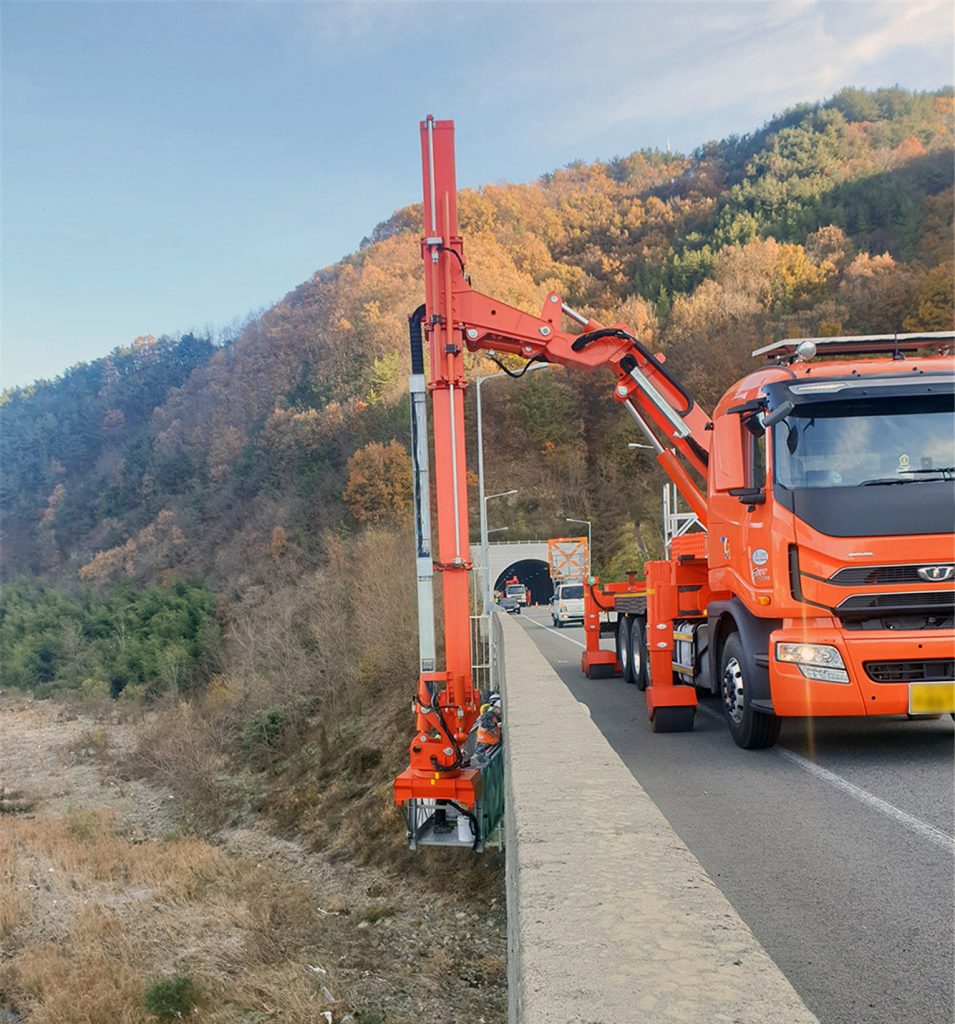

장비 사진
타노스
Thanos
장비 사진
제원표
| 교량하부작업(밑으로) | 24m |
|---|---|
| 인도폭(4차선) | 3.5m |
| 수평거리 | 22m |
| 방음벽 | 4m |

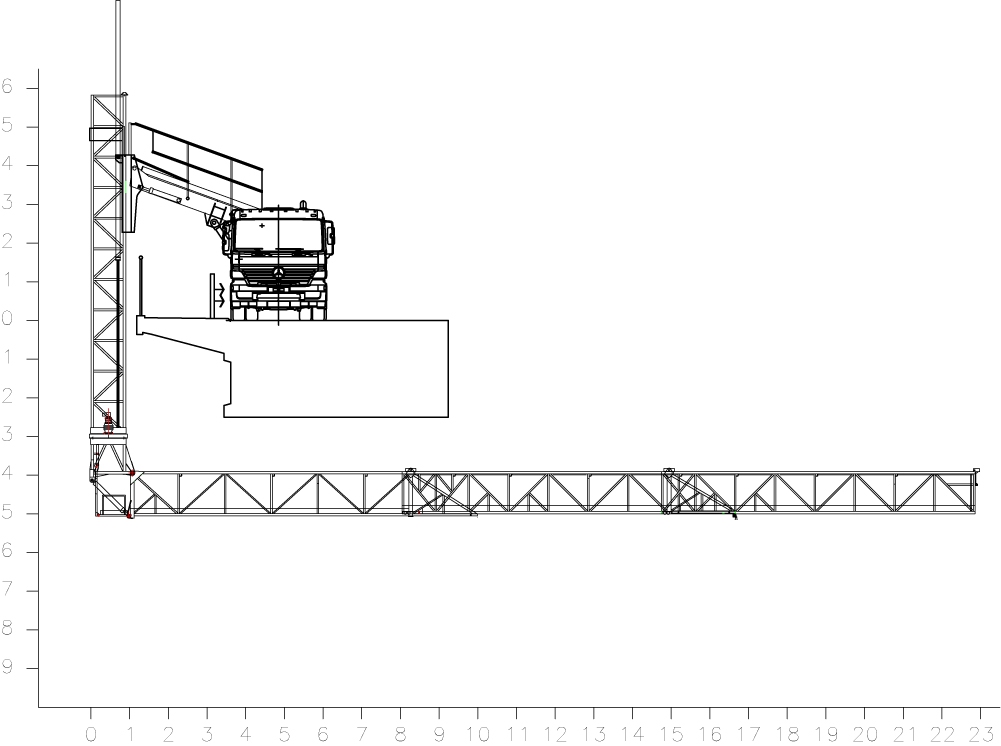

작업반경도
옵티머스
Optimus
장비 사진
ABC 230
장비 사진
제원표
ABC 150
장비 사진
제원표
MBI 180

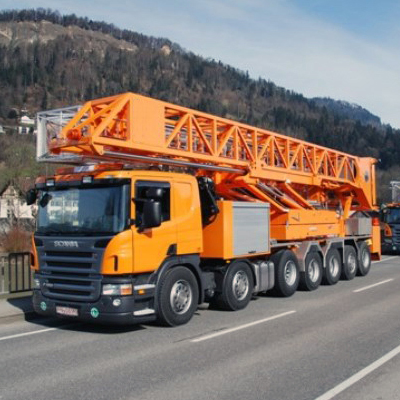

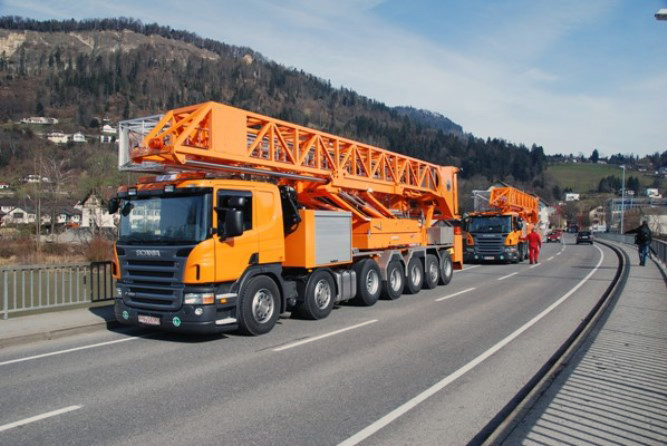

장비 사진
제원표
| Details | |
|---|---|
| Max. horizontal range | 59′ 1″ |
| Max. lowering depth | 28′ 6″ |
| Width of platform | 5′ 7″ |
| Space required on bridge | 8′ 2″ |
| Max. load on platform | 1,760 lbs |
| Max. load on telescopic platform | 880 lbs |
| Max. overbridging of sidewalk | 8′ 2″ |
| Max. crossing of sound barrier | 11′ 5″ |
| Rotation of platform | 180 ° |
| Dry weight | 70,400 lbs |
| Overall length | 39′ 4″ |
| Overall width | 8′ 2″ |
| Overall height | 13′ 1″ |
| Optional Equipment | |
|---|---|
| Sidewalk clearance w/ telescopic rotation frame | 11′ 5″ |
| Crossing sidewalk/sound barrier w/ elevated frame |
11′ 1″ / 15′ 9″ |
| Crossing sound barrier w/ lifting frame | 14′ 1″ |
| Working height pneumatic/hydraulic lift | 35′ 5″ |
| Maximum lowering depth pier inspection | 262′ 5″ |
MBI 110

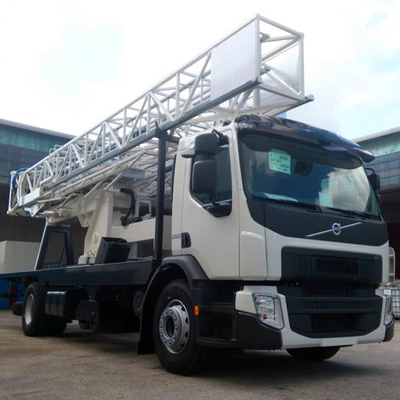

장비 사진
제원표
| Details | |
|---|---|
| Max. horizontal range | 36′ 1″ |
| Max. lowering depth | 24′ 7″ |
| Width of platform | 3′ 11″ |
| Space required on bridge | 7′ 10″ |
| Max. load on platform | 1,100 lbs |
| Max. load on telescopic platform | 550 lbs |
| Max. overbridging of sidewalk | 7′ 6″ [11′ 1″] |
| Max. crossing of sound barrier | 9′ 6″ |
| Rotation of platform | 180 ° |
| Dry weight | 27,500 lbs [34,100 lbs] |
| Overall length | 33′ 9″ |
| Overall width | 7′ 10″ |
| Overall height | 12′ 5″ |
| Optional Equipment | |
|---|---|
| Scaffold – maximum working height | 5′ 6″ |
| Platform extension – maximum horizontal range | 42′ 7″ |
| Maximum sidewalk clearance with telescopic rotation frame |
11′ 2″ |
| Pneumatic lift – maximum working height | 15′ 5″ |
| Special erection function (excavator erection) | – |
CD-200BI-10
장비 사진

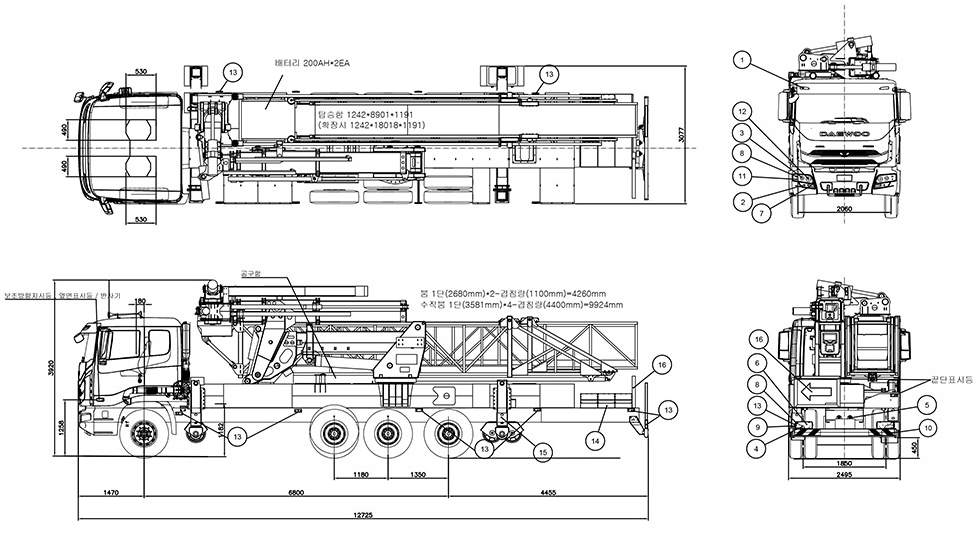

외관도

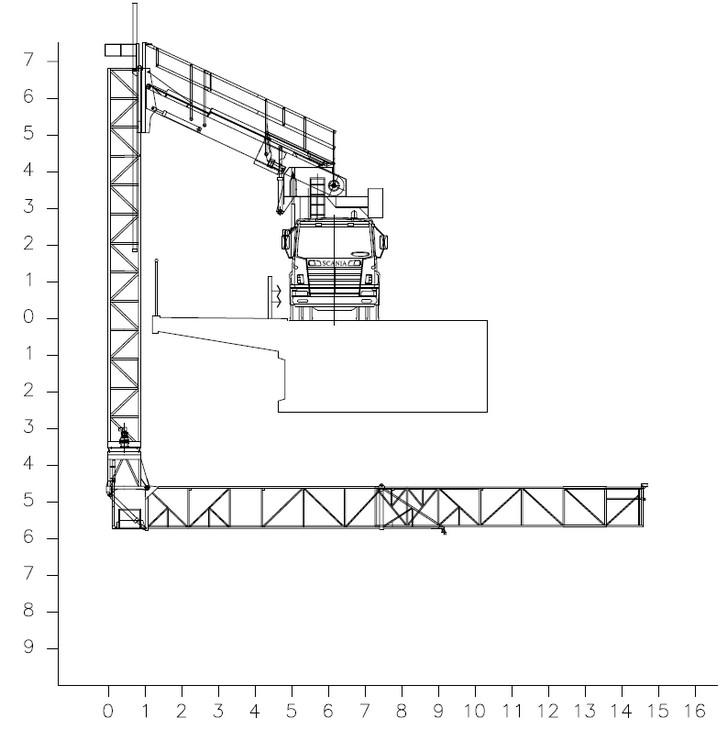

작업반경도
CD-150BI
장비 사진
외관도
작업반경도
